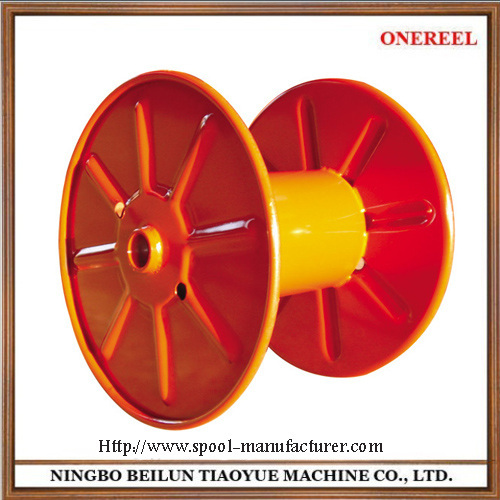

punch-type cable reel drum PND100-1250 manufacturer from China Ningbo Beilun Tiaoyue Machine Co.,LTD

Price:	10.0~100.0 USD
Payment Terms:	T/T,L/C;paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: PND100-1250

Production Capacity: 50 pcs/day

Delivery Date: 10-20 days

Means of Transport: Ocean,Air

Packing: industry packing

Name: punching cable spool reels

Features:
1.Price low, saving your costs
2.on time delivery
3.High rigidity and light weight,

Main Technical Parameters Data

Serial Number	Specification Model	Lateral Plate Diameter D1	Major Diameter D2	Axle Hole Diameter D4	Carrying Hole Diameter D5	Center Distance E of Axle Hole and Carrying Hole	External Width L1	Internal Width L2
1	315	315	120	33.5	16	86	238	200
2	400	400	160/200	56	16	71-112	300	250
3	440	440	220	80	16-28	180	316	292
4	450	450	180/224	56	16-28	71-112	335	280
5	500	500	250	56	16-28	142	335	315
6	560	560	224/280	56	16-28	71-112	425	355
7	600	600	250/300	56/60	16-28	71-112	340/3 85	300/3 50
8	630	630	335	80	16-32	140	495	450
9	710	710	355/400	80	28-40	71-112	530	450
10	760	760	355	32.5/54	21-35	64-115 95-126.5	345 315	295 280
11	762	762	355/400	60	25-40	135	360	280
12	787	787	450	127	25.4	120	560	485
13	800	800	450	200	28-40	135	600	500
14	900	900	380	80	28-40	400	764	720
15	1000	1000	500	200	28-40	320	780

In accordance with GB4004-83, JBT7600.3-94 and DlN46395 standards, the product is formed by pressing and welding common carbon steel Q235 (A3) thin steel plate. The periphery of lateral plate adopts a hemming structure. The product has the characteristics of not only strengthening the strength of lateral plate, but also having higher rigidity and toughness, light weight and fastness, which can be used for drawing-wire machine, buncher, stranding machine, extruder, cabling machine and armouring machine
